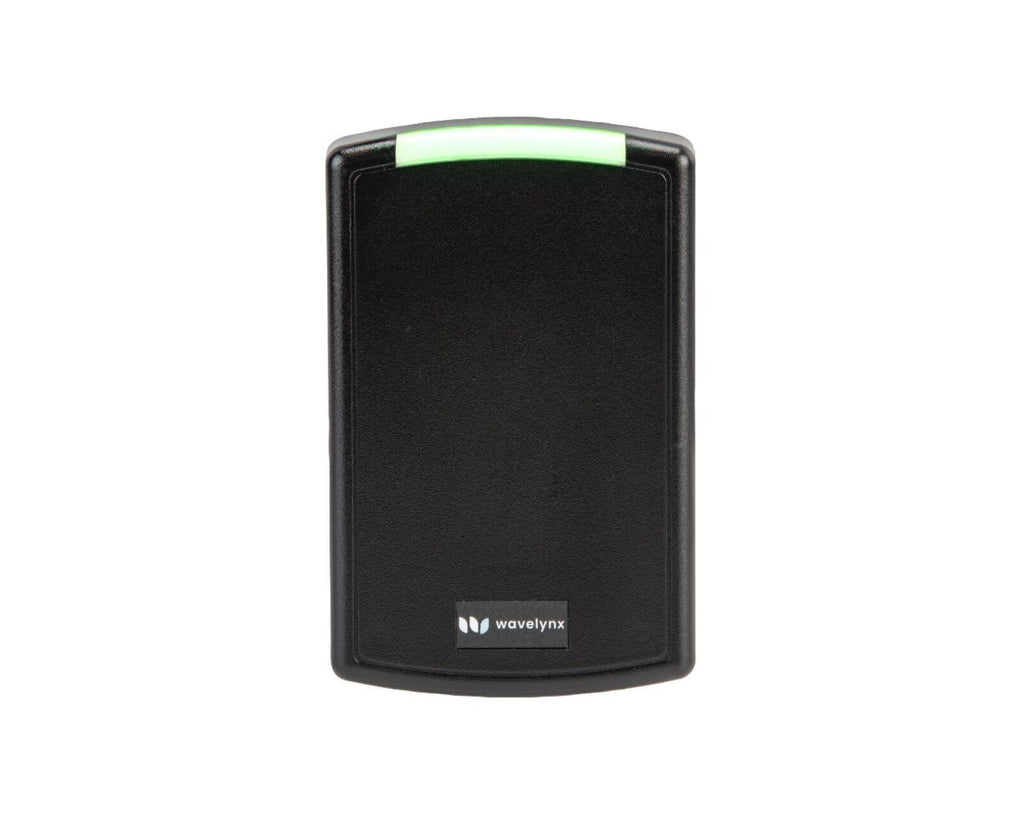

Wavelynx Ethos ET20-6WS single-gang electronic access control reader for compatible commercial door security installations. The ET20-6WS supports 13.56 MHz high-frequency smart credentials and mobile credentials (NFC/Bluetooth, as supported by the installed access system). It is not the ET20-7WS version that also supports legacy 125 kHz proximity credentials.
Specifications
- Brand: Wavelynx
- Series: Ethos
- Manufacturer model / MPN: ET20-6WS
- Form factor: Single-gang wall-mount reader, non-keypad
- Credential technologies: 13.56 MHz HF smart cards and supported mobile credentials (NFC and Bluetooth)
- Not supported: Legacy 125 kHz low-frequency proximity cards (for 125 kHz support, consult ET20-7WS)
- Access control interfaces: Wiegand / OSDP with Secure Channel support when configured on compatible systems
- Operating voltage: 5β16 V DC
- Current draw: 120 mA average / 170 mA peak (manufacturer datasheet)
- Dimensions: 5.1 Γ 3.25 Γ 0.71 inches (ET20 housing)
- Installation: Single-gang wall box; manufacturer describes this model as suitable for outdoor use when installed properly
- Standard finish: Black; verify the specific carton for alternate colour or custom configurations
- Quantity per order: One reader, sold individually
Condition: New β Sealed. New in original sealed manufacturer packaging.Β
100% as described or your money back.
If the item you receive does not match the listing, we will make it right.Wavelynx Ethos ET20-6WS single-gang electronic access control reader for compatible commercial door security installations. The ET20-6WS supports 13.56 MHz high-frequency smart credentials and mobile credentials (NFC/Bluetooth, as supported by the installed access system). It is not the ET20-7WS version that also supports legacy 125 kHz proximity credentials.
Specifications
- Brand: Wavelynx
- Series: Ethos
- Manufacturer model / MPN: ET20-6WS
- Form factor: Single-gang wall-mount reader, non-keypad
- Credential technologies: 13.56 MHz HF smart cards and supported mobile credentials (NFC and Bluetooth)
- Not supported: Legacy 125 kHz low-frequency proximity cards (for 125 kHz support, consult ET20-7WS)
- Access control interfaces: Wiegand / OSDP with Secure Channel support when configured on compatible systems
- Operating voltage: 5β16 V DC
- Current draw: 120 mA average / 170 mA peak (manufacturer datasheet)
- Dimensions: 5.1 Γ 3.25 Γ 0.71 inches (ET20 housing)
- Installation: Single-gang wall box; manufacturer describes this model as suitable for outdoor use when installed properly
- Standard finish: Black; verify the specific carton for alternate colour or custom configurations
- Quantity per order: One reader, sold individually
Condition: New β Sealed. New in original sealed manufacturer packaging.Β
